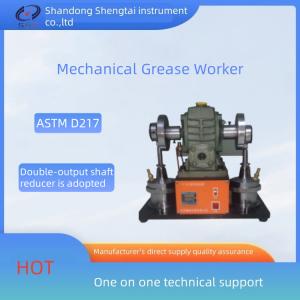

SH269 Lubricating Grease And Petroleum Grease For 100000 Shear Testing Machines

Determination of cone penetration of SH269 lubricating grease and petroleum grease for 100000 shear testing machines

SH269 Grease Worker according to GB/T269-91 "Grease and petroleum grease cone penetration determination" test standard requirements in the specified test conditions, after the change of mechanical shear work to judge the mechanical stability of grease, to extend the work cone penetration or shear stability, the unit is 0.1mm.

ASTM D217 ISO2137 Petroleum Products Lubricants Tester Mechanical Grease Worker

Grease Worker ASTM D217 for Measuring The Consistency of Lubricating Grease

ASTM D217 Lubricating Mechanical Grease Worker

Motorized Grease Worker, ASTM D217 Cone Penetration of Lubricating Grease

Performance characteristics:

1 the use of motor drive reducer to achieve 60 times/min shear rate

2.Extended coning test and optional shear stability test

3.The display can display the cutting times by itself

4 Counter can count by itself

5 the whole instrument structure is compact and complete

A special cooling fan is installed behind the motor to ensure the continuous operation of the whole instrument

1) Motor: Horizontal single-phase capacitor starting motor speed: 1400 RPM

2) Coupling: plum shaped elastic coupling

3) Worm gear reducer: double outlet gear reducer with transmission ratio of 25:1 is adopted. A pair of eccentric mechanisms are installed on the cochlear shaft on both sides of the reducer.

4) Shear rate: 60 times/min and 100000 times/min

5) Maximum counting capacity:9999999

6) grease working stroke of the work: 67-71 - mm, orifice plate on each hole diameter: 6.35 + 0.13 Ф

8) Power supply: AC220, 50Hz

Packing list
