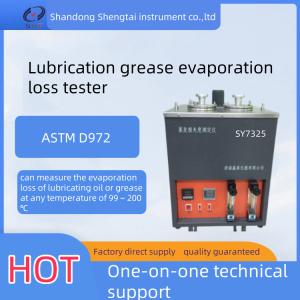

SY7325 lubricating oil and grease evaporation loss tester is designed and manufactured according to GB/T7325 "lubricating oil and grease evaporation loss determination method" and ASTM D972 .
It is suitable for measuring the evaporation loss of lubricating oil or grease at any temperature of 99 ~ 200℃.
ASTM D972 Lubricating Oils and Greases Evaporation Loss Tester
ASTM D972 Lab Lube Oil Grease Evaporation Loss Test Apparatus
ASTM D972 Lube Oil Grease Evaporation Loss Tester
Lube Oil/Grease Evaporation Loss Tester
ASTM D972 Lubricating Greases and Oils Evaporation Loss Testing Machine
Product features:
It is composed of bath, temperature control meter, air pump, flow meter, temperature control circuit and so on.
An air pump and a flowmeter are used to inject air into the sample in the evaporation test device in the constant temperature bath at a quantitative flow rate. After a specified time, the evaporation loss of the sample is measured.
Technical indicators:
| Temperature range | room temperature ~ 260 ºC adjustable |
| Display accuracy | 0.1ºC |
| Input power | 2KW |
| Flow meter | 0.4 ~ 4g/min |
| timing device | 0 ~ 100 hours |
| Input voltage | AC220V±10% 50Hz
|
| Mixing motor | 25W |
| Dimension: 430 * 320 * 480mm Weight: 20kg | |
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Power cord | 1 | piece | |
| 3 | Evaporating pan | 2 | groups | |
| 4 | Air filter | 1 | piece | |
| 5 | Air pump | 1 | piece | |
| 6 | Fuse wire | 1 | piece | 5Aor20A |
| 7 | specification | 1 | copy | |
| 8 |
