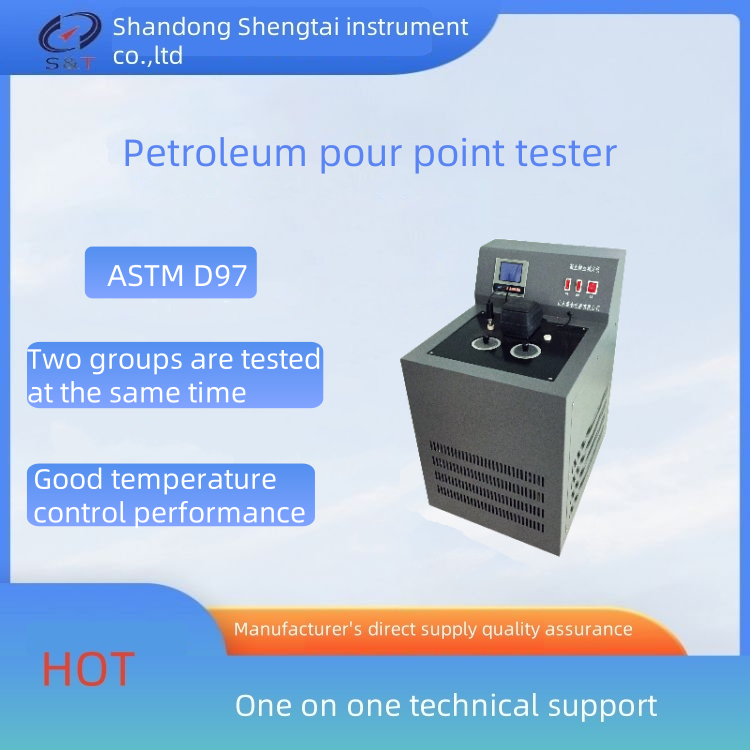

ASTM D97 Fast and Accurate SD510-N Petroleum pour point Testing Equipment for Petroleum pour point test
SD510-Q The pour point meter is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T3535, and is suitable for measuring the pour point of sample products according to the methods specified in the above standards.
Pour point refers to the minimum temperature at which a cooled sample of oil can flow under specified test conditions; Expressed in degrees Celsius.
| Compliance standards | GB/T3535 ASTM D97 |
| Test sample | Petroleum Products Chemical Products |
| Detection result | Determination of the pour point of petroleum products |
| Product model | SD510-Q |
Performance characteristics
1. The instrument adopts a compressor for refrigeration, with fast cooling speed and long service life.
2. The display mode adopts small liquid crystal display, with good temperature control stability.
3. Two sets of tests can be conducted simultaneously, with a single slot and two holes, and the cooling speed is fast.
4. Provide a pour point test tube to measure the pour point value of the oil product.
Main technical specifications and parameters
1. Working power supply: AC220V ± 10%; 50Hz.
2. Cold bath temperature control: room temperature~- 40 ℃
Pour point range:room temperature~- 25℃
3. Refrigeration system: a new type of refrigeration compressor.
4. Ambient temperature: ≤ 30 ℃.
5. Relative humidity: ≤ 85%.
6. Power consumption: no more than 1000W
Consumables required: alcohol.
Instrument size: 380 * 480 * 580mm Weight: 40kg
SD510-Q Petroleum Pour Point Tester Matched with Pour Point Test Tube Pour Point Thermometer Comply with GB/T3535
Details of petroleum product pour point tester
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Host | 1 | set | |
| 2 | Pour point glass tube | 2 | piece | |
| 3 | Pour point thermometer | 2 | piece | |
| 4 | Pour point test tube sleeve | 2 | piece | |
| 4 | power cord | 1 | piece | |
| 5 | Fuse tube | 1 | piece | |
| 6 | instruction manual | 1 | copy | |
| 7 | Packing list | 1 | copy | |
| 8 | Certificate warranty card | 1 | copy |
